＊System can be additionally installed even when ladder cages are already
present.

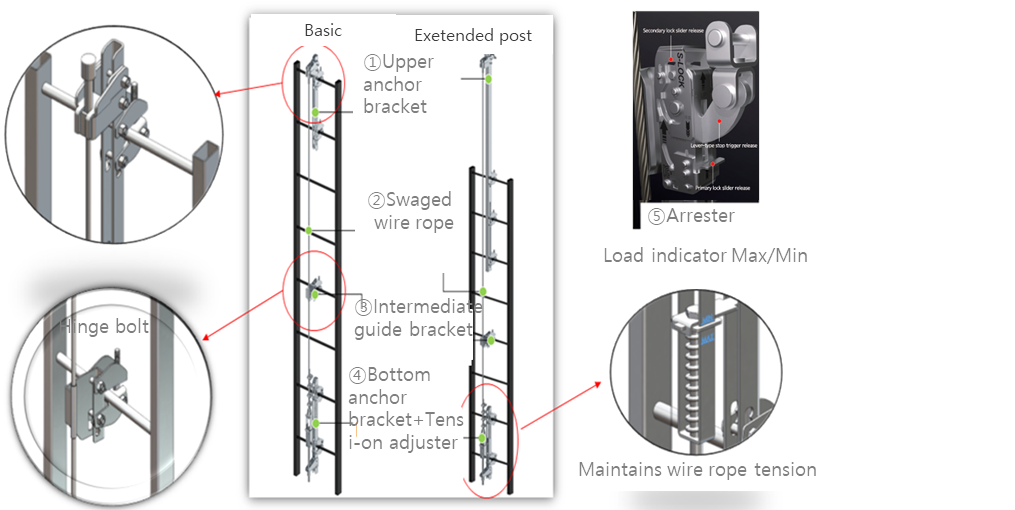

| ① Upper anchor bracket | -Installed at the topmost part of the ladder and connects the swaged wire rope -Depending on applications, can be classified as upper anchor or anchor post bracket |
| ② Swaged wire rope | -9.5mm wire rope with a swaged block assembled at the top, which is inserted into and secured by the upper anchor bracket |
| ③ Intermediate guide bracket | -A bracket designed to prevent interference with external objects caused by wire rope movement due to wind or other factors |
| ④ Bottom anchor bracket+ Tension adjuster |
-Device installed at the lower end that maintains constant tension on the wire rope, compensating for contraction and expansion caused be temperature changes |
| ⑤ Arrester | -A hinge bolt-type safety hook that directly connects the wire rope of the fall protection system to the workers (capable of passing through intermediates brackets) |
▷ System Composition :
Upper Anchor Bracket① + Swaged wire rope② + Intermediate Guide Bracket③+ Lower Anchor Bracket④ (+Tensioner) + Arrester⑤ ( S-Lock)
▷ Basic Application: Vertical Ladders
▷ Expansion Applications: Locations requiring movement and work at height

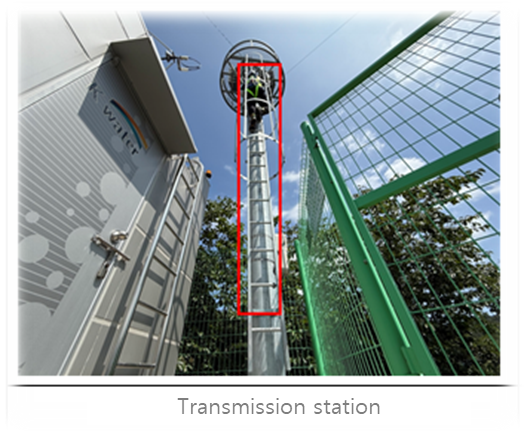

- Steel Tower (electric transmission/distribution, communication, etc), utility poles,
CCTV towers, maintenance ladders, etc
- Underground Structure (water purification plant, sewage treatment plant, etc)
- Ship compartments, ports, dams, bridges

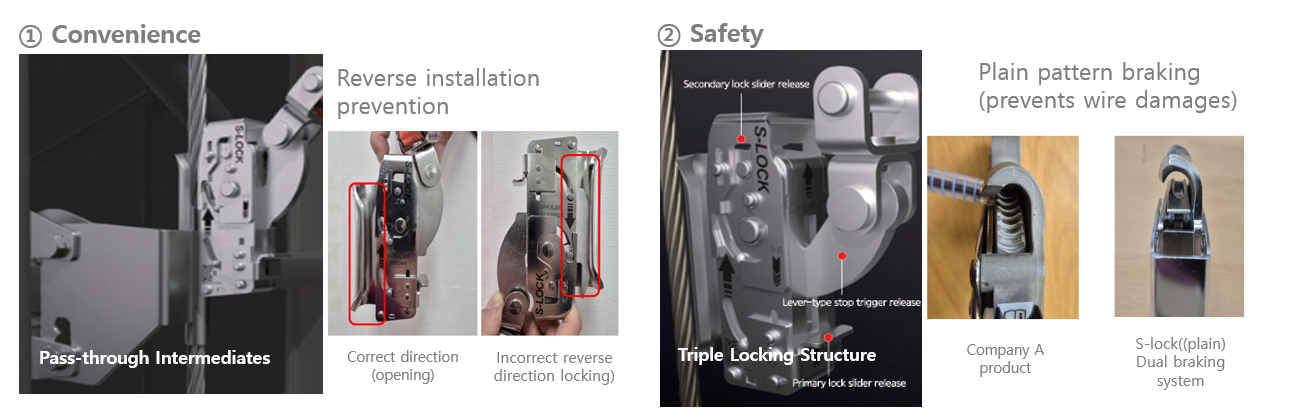

▷Vertical Fall Protection Arrester_S-Lock
Pass-through type intermediate fixed clamp, robust triple locking structure, double-wedge braking for preventing wire damage. Excellent convenience and safety features such as preventing reverse installation by the worker
